var x = 1;
a();
b(); // we are calling the functions before defining them. This will work properly, as seen in Hoisting.
console.log(x);

function a() {
  var x = 10; // local scope because of separate execution context
  console.log(x);
}

function b() {
  var x = 100;
  console.log(x);
}

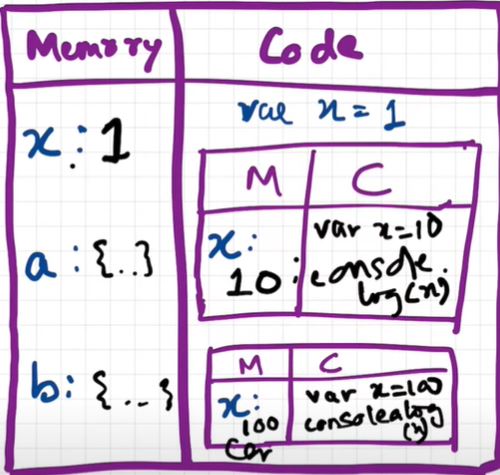

flowchart TB
    subgraph GEC["1. Global Execution Context (GEC)"]
        G_Mem["Memory Phase:
x → undefined
a → function a() { ... }
b → function b() { ... }"]
        G_Code["Execution Phase:
x = 1
a() called → New EC created"]
    end

    GEC --> EC_A

    subgraph EC_A["2. EC for a()"]
        A_Mem["Memory Phase:
x → undefined"]
        A_Code["Execution Phase:
x = 10
console.log(x) → 10
EC removed after completion"]
    end

    EC_A --> EC_B

    subgraph EC_B["3. EC for b()"]
        B_Mem["Memory Phase:
x → undefined"]
        B_Code["Execution Phase:
x = 100
console.log(x) → 100
EC removed after completion"]
    end

    EC_B --> Done["4. GEC removed
Program ends"]

    style GEC fill:#7c3aed,color:#fff
    style EC_A fill:#4f46e5,color:#fff
    style EC_B fill:#6366f1,color:#fff
    style Done fill:#059669,color:#fff
